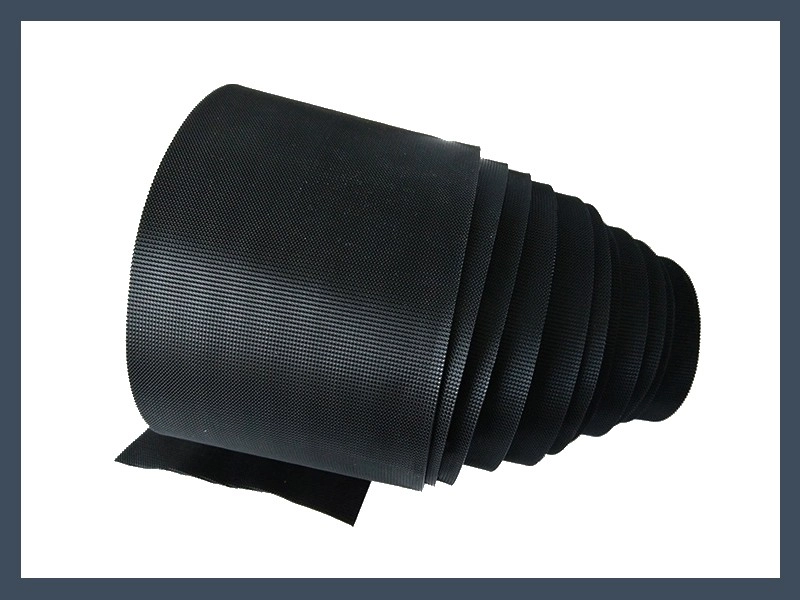

No. 4 Double-Sided Injection Hook Tape
No. 4 Double-Sided Injection Hook Tape Thumb No. 4 Double-Sided Injection Hook Tape Thumb

No. 4 Double-Sided Injection Hook Tape

Reference price US$0.05 – 1.20 / m FOB Xiamen · varies with width and order quantity
  • Model No: vc-091

  • Specifications

    Width : 10-150 mm, slit to order (+/-0.5 mm)
    Material : Woven hook and loop
    Colour : Natural / made to order
    Minimum order : 500 m (stock colour) / 3,000 m (dyed)
    Sample : 7 days, cut to width
    Production : 15-25 days after sample approval
    Certification : SGS / Oeko-Tex / ISO 9001; REACH and RoHS declarations
    Packing : Polybag, export carton, palletised for LCL
    Port : EXW Xiamen, FOB or CIF
    Payment : T/T 30% deposit, balance against copy of B/L
  • Inquiry now

Detailed description

If the last shipment had edges fraying, a width that measured wide on arrival, or a peel that read low in incoming inspection, the cause is almost always in one of the four items described on this page rather than in the price.

What the buyer is choosing

Grade and backing are separate decisions. The same woven face is supplied plain for stitching, coated with acrylic for panels, or coated with rubber for rough and low-energy surfaces. Buying the face and the backing as one item is what produces the 'it stuck for a week then fell off' complaint.

The material question

The construction is a woven hook and loop face in the standard grade: enough hook density for a normal closure, priced for volume rather than for a five-year service life. If the application cycles more than a few thousand times, ask for the higher-density weave instead of paying twice for the same part.

How it is quoted

Minimum order is 500 m in a stock colour and 3,000 m for a custom dye run. The dye minimum is a machine load, not a policy: below it the lot cannot be dyed evenly, and a split lot reads as two colours under D65.

What ships with the goods

Each carton is marked with the lot number, width, colour and quantity, and the lot report references the same number. That is what makes a claim traceable six months later instead of a conversation about photographs.

Checking it on arrival

On arrival, measure the width at the core and at the outside of the roll before you cut anything. A roll that measures wide at one end and nominal at the other was slit under uneven tension, and the whole lot will behave the same way on your line.

If the grade is still open, send the application and the cycle count and we will tell you which of the three constructions is the cheapest one that will survive it.
